Digital Read Out Display

Digital Read Out Display - 800 Series

A glass scale is installed in the linear scale guaranteeing high accuracy. There are four types of linear scale: Standard, Slim, Ultra-slim and long scale type.

gallery/skin-frontend-digital-digitalreadouts-images-item-img
DSC-801M
gallery/skin-frontend-digital-digitalreadouts-images-item-img
DSC-802M

Where to use: MILL, OTHER

Where to use: MILL, OTHER

Keyboard: X0/X

Keyboard: X0/X

Function

Function

800 Series

Bolt hole circle

Provided

Selecting axis function in Bolt hole circle

Provided

Preset & Preset recall

Provided

Changing resolution

Provided

Initializing

Provided

Memory back up at power failure

Provided

Display zero

Provided

Rate compensation

Provided

Testing FND

Provided

1/2 Partition

Provided

ABS / INCR

100 points

Changing direction of axis

Provided

RAD / DIA for lathe

Provided

Summing up 2 axes for lathe

Provided

Display " Error"

Provided

Wired remote controller

Provided

Bolt hole circle

Since up to 10,000 holes can be made along the circumference of the basic circle, it increases efficience of works and production in working for molds and processing parts.

ABS/INCR

Incremental machining (zero approaching) can be used anytime by presetting the coordinate of each axis without error. In absolute positioning, JENIX counter can be saved 100 coordinates to memory.

Counting direction conversion

Moving direction can be converted, (+) or (-) value can be selectable.

Preset & preset recall

It makes your working more convenient with easy operation to preset data and recall it.

Summing up 2 axes' values

This can be used to sum up two feed values, the summed value displays at on Y-axis displaying panel.

Memory back-up

By the battery built inside a counter, pre-saved data are preserved even when the power is

gallery/skin-frontend-digital-digitalreadouts-images-item-img
DSC-803M
gallery/skin-frontend-digital-digitalreadouts-images-item-img

Where to use: MILL, OTHER

Keyboard: X0/X

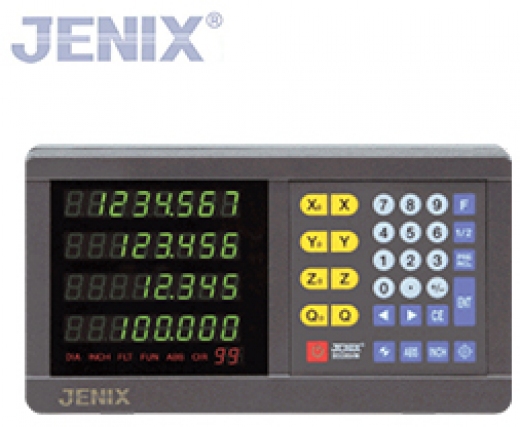

DSC-804M

Where to use: MILL, OTHER

Keyboard: X0/X

Specifications

Specification / Model

DSC- 801 / 802 / 803 / 804

Display

Green FND having 7 digits

Unit (mm/inch)

Direct conversion

Display resolution

0.01 / 0.005mm / 0.001mm

ABS

100 points

Memory backup

10 years without power

Operating temperature

-5℃ ~ 45℃ (23℉ ~ 113℉)

Voltage consumption

15W

Dimensions & weight

279(W)×70(D)×151(H), 1.6kg

Power source

AC 80 ~ 264V, 50/60Hz (free voltage)

External housing

Aluminum diecasting

Keyboard

Membrane type

Function lamp

Red light
